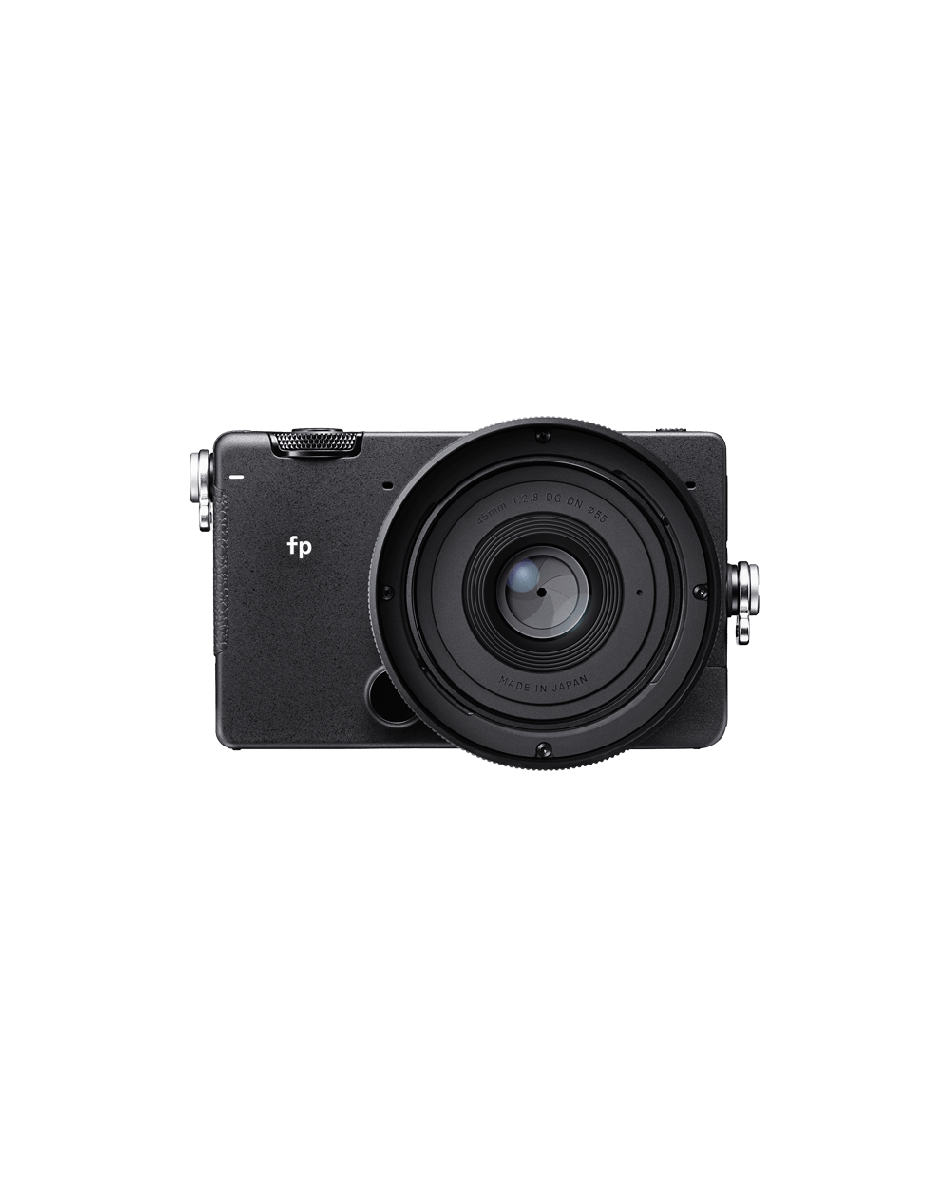

SIGMA fp + 45mm F2.8 DG DN | C

$2,199
SKU: #
1A900
  • Includes 45mm F2.8 DG DN | C lens
  • World's smallest and lightest full-frame camera
  • Robust & lightweight aluminum body
  • Dust and splash proof structure
  • Supports UHD 4K/24, 25 & 30 fps
  • Supports 12-bit Cinema DNG
  • Electronic image stabilization
  • Full-time electronic shutter
  • Face/Eye Detection AF
  • HDR Shooting
Find a Dealer



Awards

  • TIPA 2020 BEST FULL FRAME CAMERA EXPERT

    TIPA 2020 BEST FULL FRAME CAMERA EXPERT

Format
Type
Interchangeable-lens Mirrorless Type Digital Camera
Memory Media
SD, SDHC, SDXC memory card (UHS-II supported), Portable SSD (USB 3.0 connection, USB bus power supported)
Lens Mount
L-Mount
Image Sensor
Type
35mm full-frame (35.9mm x 23.9mm) Back-illuminated Bayer CMOS sensor
Camera Effective Pixels / Total Pixels
Approx. 24.6 MP / Approx. 25.3 MP
Aspect Ratio
3:2
Color Filter System
RGB Primary color filter
Still Image File Format
Lossless compression RAW(DNG) data 12 bit, 14 bit / JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible
Image Aspect Ratio
[21:9] / [16:9] / [3:2] / [A Size (√2:1) ] / [4:3] / [7:6] / [1:1]
File Size
DC crop mode in ( )
RAW
HIGH: 6,000x4,000 (3,840x2,560)
LOW: 3,008x2,000 (1,920x1,280)
JPEG [21:9]
HIGH: 6,000x2,576 (3,840x1,648)
MED: 4,240x1,824 (2,736x1,168)
LOW: 3,008x1,288 (1,920x824)
JPEG [16:9]
HIGH: 6,000x3,376 (3,840x2,160)
MED: 4,240x2,392 (2,736x1,536)
LOW: 3,008x1,688 (1,920x1,080)
JPEG [3:2]
HIGH: 6,000x4,000 (3,840x2,560)
MED: 4,240x2,832 (2,736x1,824)
LOW: 3,008x2,000 (1,920x1,280)
JPEG [A Size (√2:1) ]
HIGH:5,664x4,000 (3,616x2,560)
MED:4,000x2,832 (2,560x1,824)
LOW:2,832x2,000 (1,808x1,280)
JPEG [4:3]
HIGH:5,344x4,000 (3,408x2,560)
MED:3,776x2,832 (2,416x1,824)
LOW:2,672x2,000 (1,712x1,280)
JPEG [7:6]
HIGH:4,960x4,000 (3,184x2,560)
MED:3,520x2,832 (2,272x1,824)
LOW:2,480x2,000 (1,584x1,280)
JPEG [1:1]
HIGH:4,000x4,000 (2,560x2,560)
MED:2,832x2,832 (1,824x1,824)
LOW:2,000x2,000 (1,280x1,280)
Color Space
sRGB, Adobe RGB
Movie Format
Camera Internal Record
Movie Format
CinemaDNG(8 bit, 10 bit, 12 bit)/ MOV:H.264 (ALL-I, GOP)
Audio Format
Linear PCM (2 ch 48 kHz / 16 bit)
Record Format / Frame rate
3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p, 119.88 p
Continuous Shooting Enable Time
Up to 2 hours
Cinema DNG Memory Media Limitation
SD Card (UHS-II): UHD 8 bit 25 p or less, FHD 12 bit 59.94 p or less
Portable SSD: UHD 12 bit 29.97 p or less, FHD 12 bit 100 p or less, FHD 8 bit 119.88 p or less
HDMI External Output
Movie Format
4:2:2 8 bit
12 bit RAW: External recorder: ATOMOS Ninja V, Blackmagic Video Assist 12G supported
Audio Format
Linear PCM (2 ch 48 kHz/16 bit)
Record Format / Frame Rate
4,096 x 2,160 (DCI 4K) / 24p *Only for RAW output
3,840 x 2,160 (UHD 4K) / 23.98p, 24p, 25p, 29.97p
1,920 x 1,080 (FHD) / 23.98p, 24p, 25p, 29.97p, 48p, 50p, 59.94p, 100p, 119.88p
Focus
AF System / Focus Mode
Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus
AF Sensitivity Range / AF Mode
-5 to 18 EV (F1.4:ISO 100) / Auto, 49-point selection mode, Free Move mode, Face/Eye Detection AF mode, Tracking AF mode
AF Lock
Half-press the shutter button, or press the AEL button (setting change required)
Other Focus Functions
AF+MF, MF Assist, MF Guide, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification
Exposure Control
Metering System
Evaluative, Spot, Center Weighted Average
Metering Range
-5 to 18 EV (50mm F1.4:ISO 100)
Still Image Shooting Mode
(P) Program AE (Program Shift capable), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual
Movie Shooting Mode
(P) Program AE, (S) Shutter Angle Priority AE, (A) Aperture Priority AE, (M) Manual
Exposure Compensation
±5 EV (in 1/3 stop increments) : ±3 EV at movie recording
AE Lock
Half-press the shutter button, or press the AEL button (setting change required)
Exposure Bracket
3 shots / 5 shots stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)
ISO Sensitivity (Recommended exposure value)
Base ISO
[Still]
ISO 100,640
[Cine]
CinemaDNG 12 bit / HDMI RAW:ISO 100, 3200
MOV / CinemaDNG 10 bit, 8 bit, HDMI 4:2:2 8 bit:ISO 100, 640
Settable Range
ISO 100-25600 / Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400
Image Stabilization
Electronic Image Stabilization System (EIS)
White Balance
12 types
(Auto, Auto [Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Color Temperature [50K steps], Custom 1, Custom 2, Custom 3)
Shutter
Shutter Type
Electronic shutter
Shutter Speed
30 to 1/8,000 sec., Bulb up to 300 sec.
*Up to 1/4,000 sec. when using electronic image stabilization
Self Timer
2 sec. / 10 sec.
Drive
Drive Modes
Single Capture, Continuous, Self Timer (2 sec. / 10 sec.), Interval Timer
Continuous Drive Speed
High Speed: approx. 18 shots/ sec, Medium Speed: approx. 5 shots/ sec, Low Speed: approx. 3 shots/ sec.
Number of Recordable Frames
HIGH: 12 frames, MED: 12 frames, LOW: 24 frames
Monitor
Type / Coverage
TFT color LCD, Aspect Ratio 3:2, 3.15 type, Approx. 2.1M dots, Electrostatic capacitance system touch panel / Approx. 100%
Flash
Built-in Flash
None
Flash Mode
S-TTL automatic light control, Manual, Wireless flash, Multi-emission
Optional Functions
Red-eye Reduction / Slow Synchronization, Rear Curtain Synchronization
Flash Exposure Compensation
Max. ±3 EV in 1/3EV step increments
Flash Sync. Speed
Max. 1/30 sec.
* 1/15 sec. or less at 14 bit RAW
External Flash Support
Available when the HOT SHOE UNIT HU-11 (supplied with this product) is mounted. *S-TTL, Wireless support, X-sync.
Color Mode
16 types
(Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Warm Gold, Teal and Orange, Sunset Red, Forest Green, Powder Blue, FOV Classic Blue, FOV Classic Yellow, Duotone, Monochrome, Off)
Cloud Connection
Supported Models
ATOMOS Ninja V+*, ATOMOS Shogun CONNECT (*available when the ATOMOS CONNECT is mounted)
Director's Viewfinder
Frame Guide
1.33:1, 1.85:1, 2.39:1, Custom 1, Custom 2
Custom Frame
Input (Sensor Area / Aspect Ratio), Offset, Style (4 styles), Line (1 to 10 px), Color (White, Black, Red, Yellow, Green, Cyan, Blue, Magenta), Shading
Supported cameras
ARRI
ARRICAM / ARRIFLEX, ALEXA LF/ ALEXA Mini LF, ALEXA SXT, ALEXA Mini, AMIRA, ALEXA65, ALEXA XT
SONY
VENICE
RED
MONSTRO 8K, HELIUM 8K, DRAGON 6K, EPIC MX 5K, GEMINI 5K, KOMODO 6K
Other Functions
Save / Load Settings via QR code, Screenshot, Webcam, In-camera RAW development, Still image capture from recorded movie files, Cinemagraph, Fill Light, HDR shooting (Still / Cine), Still image shooting during movie shooting
Microphone / Speaker
Built-in stereo microphone, Monaural speaker
Language
English / Japanese / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian / Dutch / Polish / Portuguese / Danish / Swedish / Norwegian / Finnish
Interface
USB Terminal
USB3.1 GEN1 Type-C (supports Mass Stroage, Video Class(UVC), Camera Control)
HDMI Terminal
Type D (Ver.1.4)
Remote
Also used as an external microphone terminal
Timecode Input
Also used as an external microphone terminal
External Microphone Terminal
ø3.5mm stereo mini jack (Plug-in power support)
Headphone Output Terminal
ø3.5mm stereo mini jack (can be connected when using the dedicated ELECTRONIC VIEWFINDER EVF-11)
Flash-synchro Terminal
Dedicated terminal (with HOT SHOE UNIT HU-11 (supplied with this product) mounted)
Weather Sealing
Dust and Splash Resistant Structure provided (Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.)
Power
Li-ion Battery Pack BP-51
*Internal battery charge via USB terminal available. (the camera can not be used while charging)
Dimensions & Weight
Dimensions (W x H x D)
112.6 x 69.9 x 45.3mm / 4.4 x 2.8 x 1.8 in.
Weight
422 g / 14.9 oz. (including battery and SD card), 370 g / 13.0 oz. (camera body only)
Operating Environment
Operating Temperature
32 – 104 °F / 0 – +40 °C
Operating Humidity
85% or less (non-condensing)
Lens Specifications
Lens Construction
8 elements in 7 groups
?
Lens Construction
Angle of View
51.3°
Number of Diaphragm Blades
7 (rounded)
Maximum Aperture
F2.8
Minimum Aperture
F22
Minimum Focusing Distance
24cm / 9.4 in.
Filter Size
55mm
Maximum Magnification
1:4
Weight
L-Mount: 215g / 7.6 oz.
Sony E: 230g / 8.1 oz.
Dimensions (Diameter x Length)
L-Mount: 64 x 46.2mm / 2.5 x 1.8 in.
Sony E: 64 x 48.2mm / 2.5 x 1.9 in.
What's in the Box
Li-ion Battery Pack BP-51, Strap, STRAP HOLDER SH-11, USB AC ADAPTER UAC-11, USB CABLE (A-C) SUC-11, HOT SHOE UNIT HU-11, Body Cap, LENS HOOD LH577-01, FRONT CAP LCF-55mm III, REAR CAP LCR II, Instruction Manual
