SPORTS150-600mm F5-6.3 DG OS HSM + TC-1401 1.4x Teleconverter
- TC-1401 1.4x Teleconverter included in kit
- Combination offers 210-840mm focal range
- Maximum aperture is approx. F6.3-9
- AF functionality with most recent DSLR cameras
- Dust and Splash Resistant Structure
- Water- and oil-repellent lens coating
- Minimizes chromatic aberration for class leading image quality
- OS (Optical Stabilizer) function
- HSM (Hyper Sonic Motor) delivers high AF speed
- Exclusive low-dispersion glass
- Super Multi-Layer Coating reduces flare and ghosting
- Focus mode switch, focus limiter, OS mode switch
- Zoom lock switch that can be set at any focal length
- Large, built-in tripod socket with carrying strap
AWARDS
- EISA Award - Best DSLR Telephoto Zoom Lens 2015

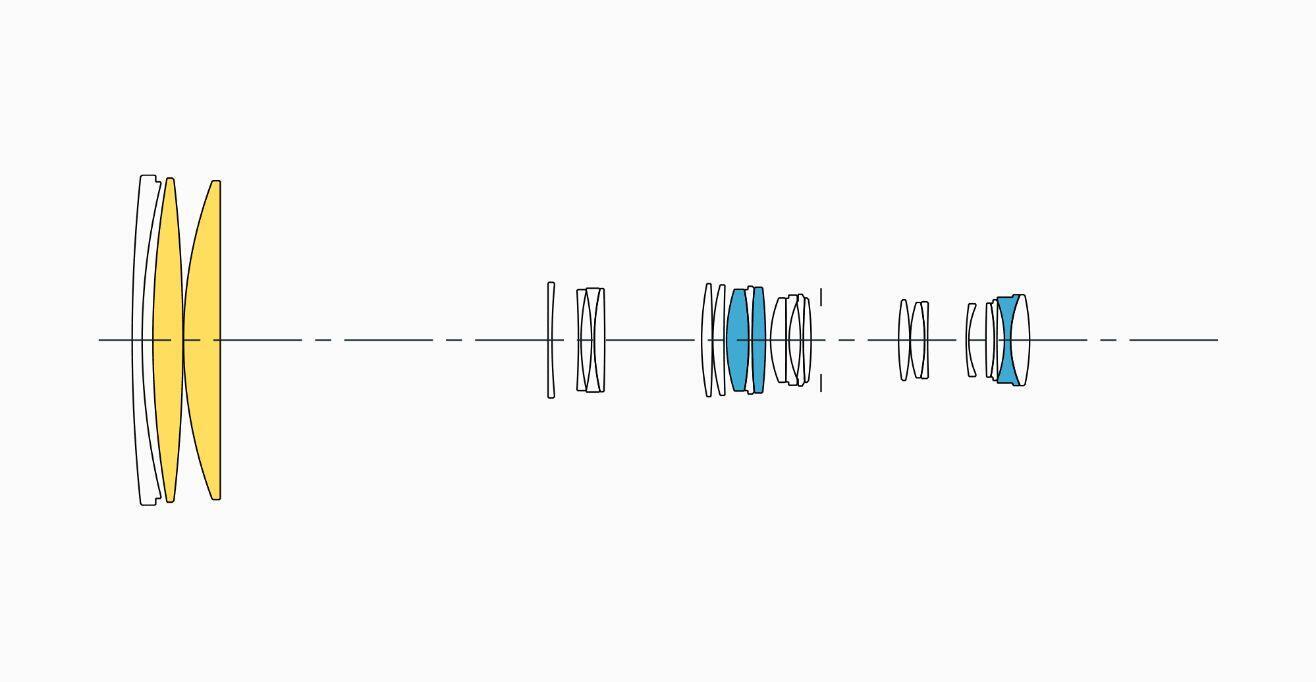

LENS CONSTRUCTION
- FLD glass
- SLD glass
MTF CHART
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens' performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Spatial Frequency
S: Sagittal Line
M: Meridional Line
10lp/mm
30lp/mm
DIFFRACTION MTF 150MM
DIFFRACTION MTF 600MM
GEOMETRICAL MTF 150mm
GEOMETRICAL MTF 600mm
